Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	T(40,70,85)HFL SERIES
Standard Package	10
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	40A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	500ns
Current - Reverse Leakage @ Vr	100µA @ 1000V
Capacitance @ Vr, F	-
Mounting Type	Chassis Mount

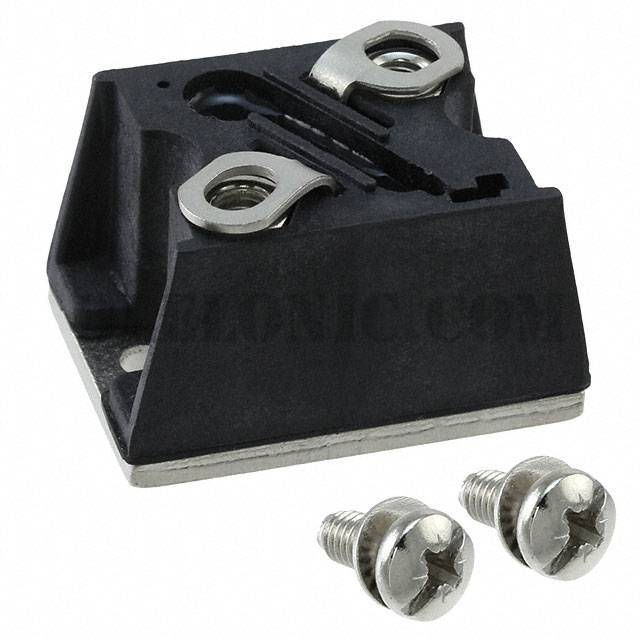

Package / Case	D-55 T-Module
Supplier Device Package	D-55

STTH810GY-TR	STMicroelectronics, Diode Standard 1000V 8A Surface Mount D²PAK, Automotive, AEC-Q101	View
RF201LAM2STFTR	Rohm Semiconductor, Diode Standard 200V 2A Surface Mount PMDTM, Automotive, AEC-Q101	View
BAS19LT1G	ON Semiconductor, Diode Standard 120V 200mA (DC) Surface Mount SOT-23-3 (TO-236),	View
P300D-E3/54	Vishay Semiconductor Diodes Division, Diode Standard 200V 3A Through Hole DO-201AD,	View
GPP20M-E3/54	Vishay Semiconductor Diodes Division, Diode Standard 1000V 2A Through Hole DO-204AC (DO-15),	View
EGP30G	ON Semiconductor, Diode Standard 400V 3A Through Hole DO-201AD,	View
1N5404G-T	Diodes Incorporated, Diode Standard 400V 3A Through Hole DO-201AD,	View
1N3595TR	ON Semiconductor, Diode Standard 150V 200mA Through Hole DO-35,	View
1N4005-TP	Micro Commercial Co, Diode Standard 600V 1A Through Hole DO-41,	View
RF201LAM4STFTR	Rohm Semiconductor, Diode Standard 400V 1.5A Surface Mount PMDTM, Automotive, AEC-Q101	View
VS-150K60A	Vishay Semiconductor Diodes Division, Diode Standard 600V 150A Chassis, Stud Mount DO-205AA (DO-8),	View
RSFGL RVG	Taiwan Semiconductor Corporation, Diode Standard 400V 500mA Surface Mount Sub SMA,	View

VS-T40HFL100S05

Part NumberVS-T40HFL100S05
