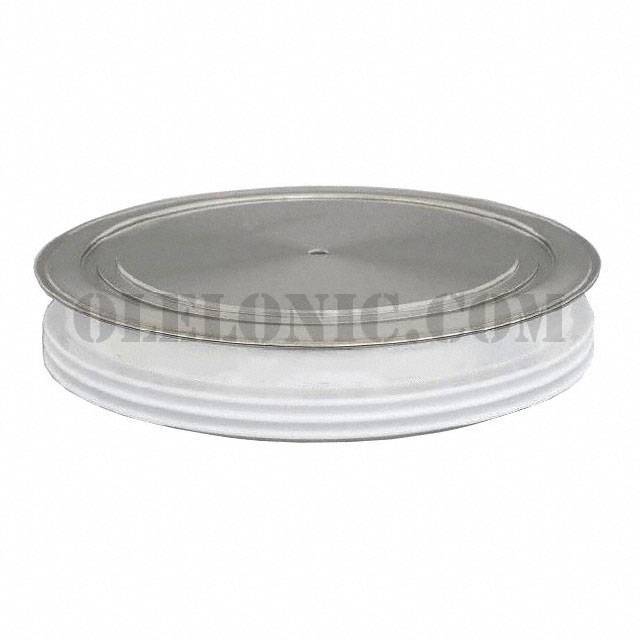

D1600U45X122XPSA1

D1600U45X122XPSA1

Part NumberD1600U45X122XPSA1

ManufacturerInfineon Technologies

DescriptionDIODE GEN PURP D12026K-1

DatasheetD1600U

Package / CaseDO-200AE

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 4500V 1560A Chassis Mount BG-D12026K-1

To learn about the specification of D1600U45X122XPSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add D1600U45X122XPSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of D1600U45X122XPSA1.
We are offering D1600U45X122XPSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

D1600U45X122XPSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	D1600U
Standard Package	1
Manufacturer	Infineon Technologies
Series	-
Packaging	Tray
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	4500V
Current - Average Rectified (Io)	1560A
Voltage - Forward (Vf) (Max) @ If	4.3V @ 2500A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	150mA @ 4500V
Capacitance @ Vr, F	-
Mounting Type	Chassis Mount
Package / Case	DO-200AE
Supplier Device Package	BG-D12026K-1
Operating Temperature - Junction	140°C (Max)
