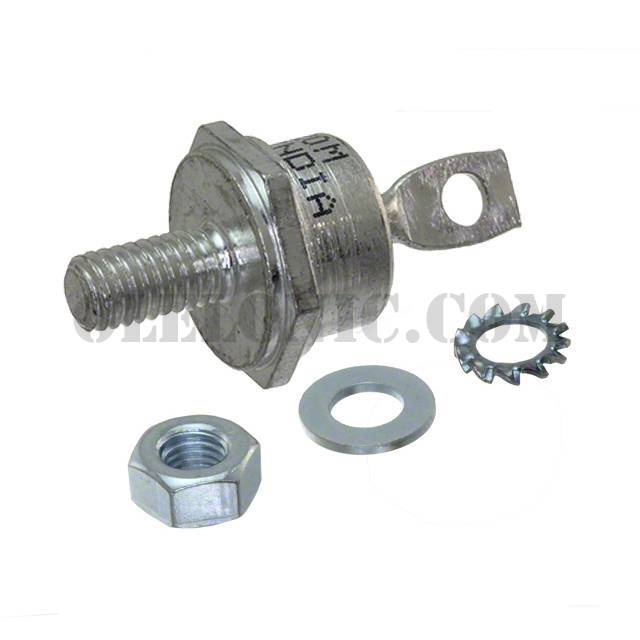

VS-70HF120M

VS-70HF120M

Part NumberVS-70HF120M

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 1.2KV 70A DO203AB

DatasheetVS-70HF(R) Series

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1200V 70A Chassis, Stud Mount DO-203AB (DO-5)

To learn about the specification of VS-70HF120M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-70HF120M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-70HF120M.
We are offering VS-70HF120M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-70HF120M - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-70HF(R) Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	70A
Voltage - Forward (Vf) (Max) @ If	1.35V @ 220A
Speed	Standard Recovery >500ns, > 200mA (Io)
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-203AB (DO-5)
Operating Temperature - Junction	-65°C ~ 180°C
