Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS16
Standard Package	3000
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	855mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	6ns
Current - Reverse Leakage @ Vr	1µA @ 75V
Capacitance @ Vr, F	2pF @ 0V, 1MHz
Mounting Type	Surface Mount

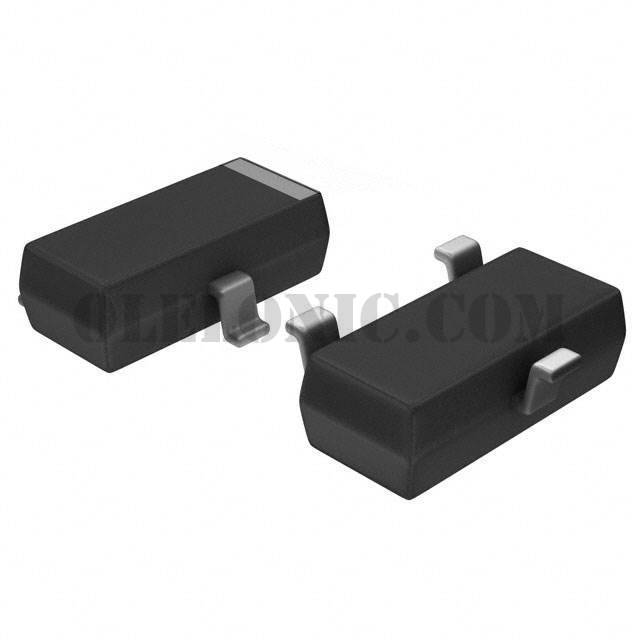

Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Operating Temperature - Junction	-65°C ~ 150°C
