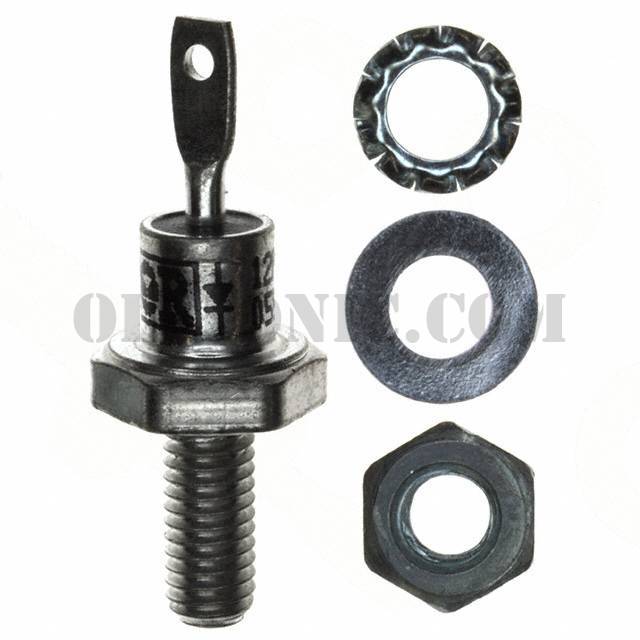

VS-12F100
VS-12F100
Part Number VS-12F100
Description DIODE GEN PURP 1KV 12A DO203AA
Package / Case DO-203AA, DO-4, Stud
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Diode Standard 1000V 12A Chassis, Stud Mount DO-203AA
To learn about the specification of VS-12F100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-12F100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-12F100.
We are offering VS-12F100 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
VS-12F100 - Product Attributes
Categories
Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet 12F(R) Series
Standard Package 100
Manufacturer Vishay Semiconductor Diodes Division
Series -
Packaging Bulk
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 1.26V @ 38A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 12mA @ 1000V
Capacitance @ Vr, F -
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-203AA
Operating Temperature - Junction -65°C ~ 175°C
Base Part Number 12F100
