BAV20W-HE3-08

BAV20W-HE3-08

Part NumberBAV20W-HE3-08

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 150V 250MA SOD123

DatasheetBAV19W thru BAV21W

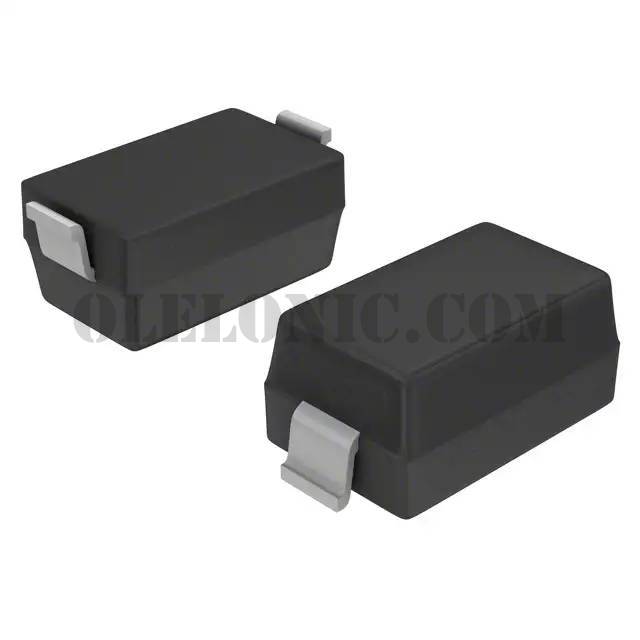

Package / CaseSOD-123

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 150V 250mA (DC) Surface Mount SOD-123

To learn about the specification of BAV20W-HE3-08, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV20W-HE3-08 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV20W-HE3-08.
We are offering BAV20W-HE3-08 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV20W-HE3-08 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV19W thru BAV21W
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	250mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 150V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123
Supplier Device Package	SOD-123
Operating Temperature - Junction	150°C (Max)
