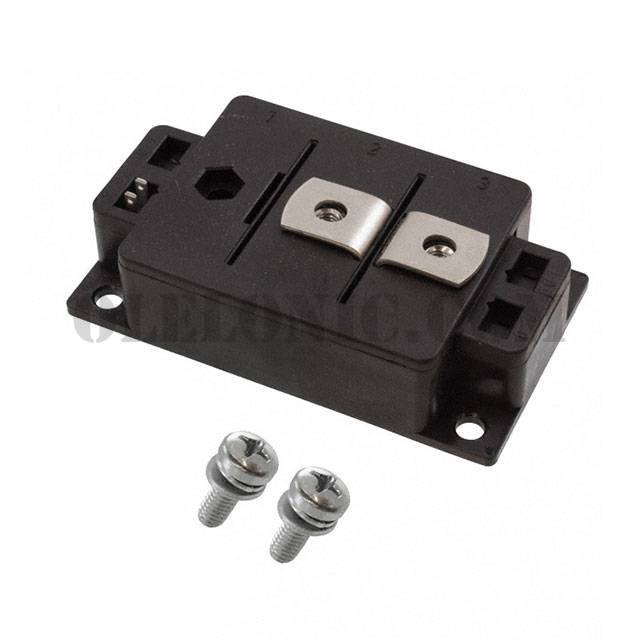

VMO1200-01F


VMO1200-01F

Part NumberVMO1200-01F

Manufacturer

Description

Datasheet

Package / CaseY3-Li

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

VMO1200-01F - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package2
ManufacturerIXYS
SeriesHiPerFET™
PackagingTray
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C1220A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.35mOhm @ 932A, 10V
Vgs(th) (Max) @ Id4V @ 64mA
Gate Charge (Qg) (Max) @ Vgs2520nC @ 10V
Vgs (Max)±20V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageY3-Li
Package / CaseY3-Li
Base Part NumberVMO
