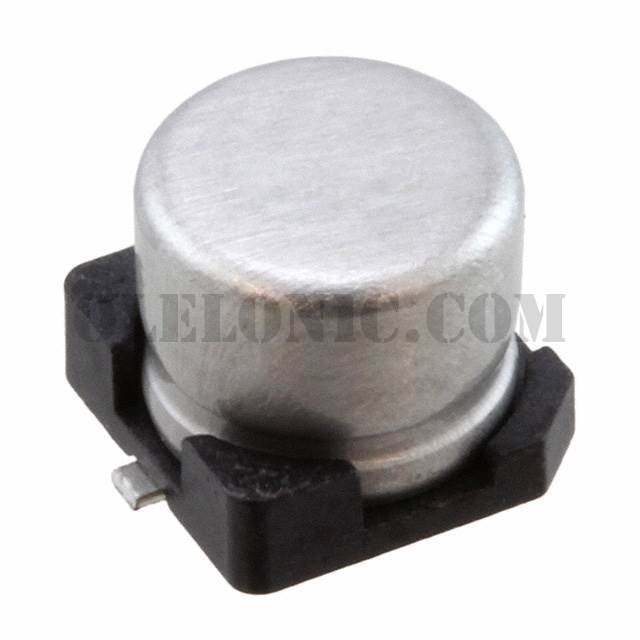

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZP Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	UZP
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	16mA @ 120Hz
Ripple Current @ High Frequency	24mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.181" (4.60mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UZP1A100MCL1GB	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1H2R2MCL1GB	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP0J220MCL1GB	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1H4R7MCL1GB	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1C330MCL1GB	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1H0R1MCL1GB	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1H0R1MCL1GB	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1V100MCL1GB	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1V2R2MCL1GB	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1A330MCL1GB	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP1C4R7MCL1GB	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View
UZP0J330MCL1GB	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UZP	View

UZP1E4R7MCL1GB

Part NumberUZP1E4R7MCL1GB
