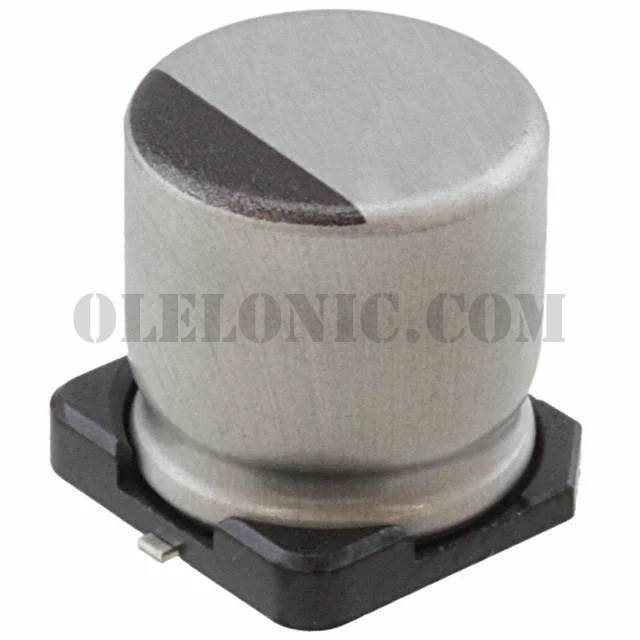

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWZ Series
Standard Package	1
Manufacturer	Nichicon
Series	UWZ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	High Temperature Reflow
Ripple Current @ Low Frequency	230mA @ 120Hz
Ripple Current @ High Frequency	345mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
