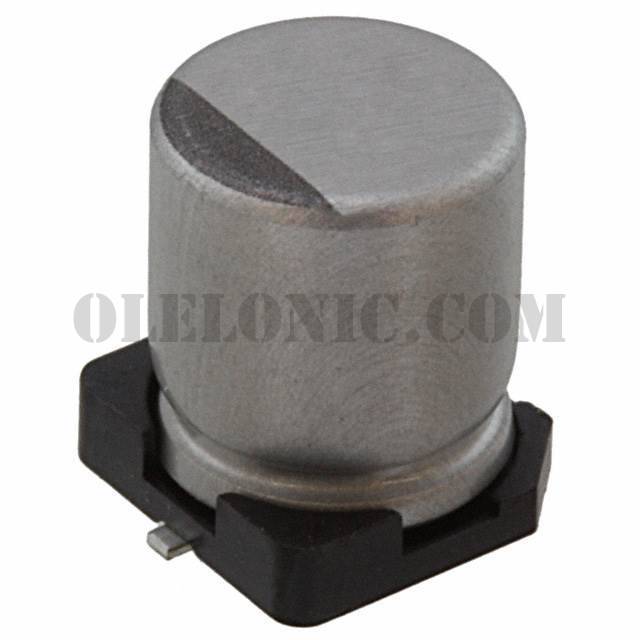

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWZ Series
Standard Package	1
Manufacturer	Nichicon
Series	UWZ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	High Temperature Reflow
Ripple Current @ Low Frequency	84mA @ 120Hz
Ripple Current @ High Frequency	126mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWZ1V101MCL1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A331MCL1GS	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J471MCL1GS	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V151MCL1GS	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J470MCL1GB	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V331MCL1GS	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J101MCL1GB	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J101MCL1GB	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A101MCL1GB	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1H4R7MCL1GB	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A681MCL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J330MCL1GB	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View

UWZ1V101MCL1GS

Part NumberUWZ1V101MCL1GS
