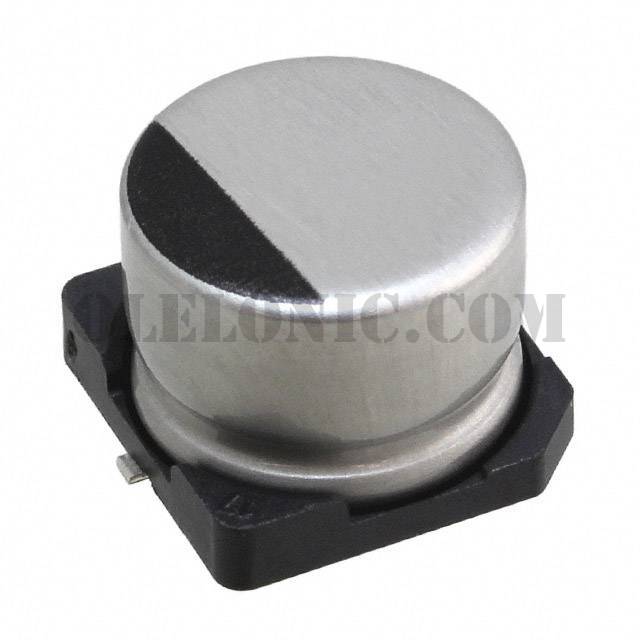

UWH1H220MCL1GS


UWH1H220MCL1GS

Part NumberUWH1H220MCL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UWH1H220MCL1GS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package1000
ManufacturerNichicon
SeriesUWH
PackagingTape & Reel (TR)
Part StatusActive
Capacitance22µF
Tolerance±20%
Voltage - Rated50V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.1000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
Polarization-
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency38mA @ 120Hz
Ripple Current @ High Frequency57mA @ 10kHz
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.244" (6.20mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
