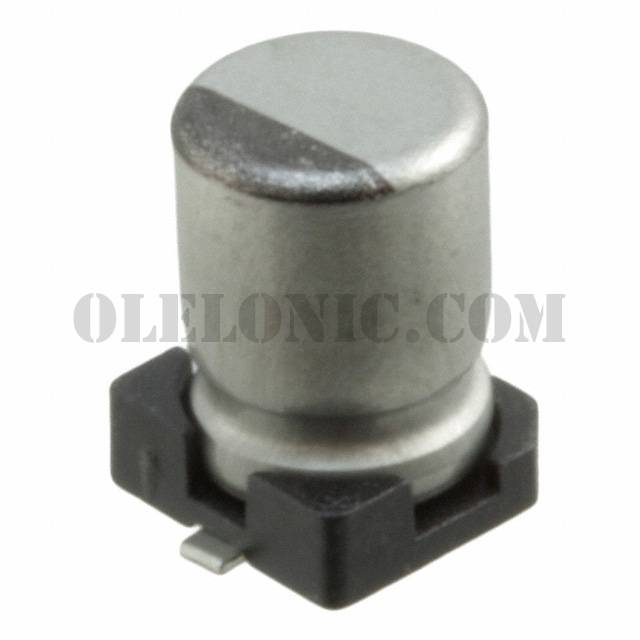

UWD1H2R2MCL1GS


UWD1H2R2MCL1GS

Part NumberUWD1H2R2MCL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UWD1H2R2MCL1GS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package2000
ManufacturerNichicon
SeriesUWD
PackagingTape & Reel (TR)
Part StatusActive
Capacitance2.2µF
Tolerance±20%
Voltage - Rated50V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Polarization-
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency15mA @ 120Hz
Ripple Current @ High Frequency30mA @ 100kHz
Impedance5 Ohms
Lead Spacing-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.240" (6.10mm)
Surface Mount Land Size0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
