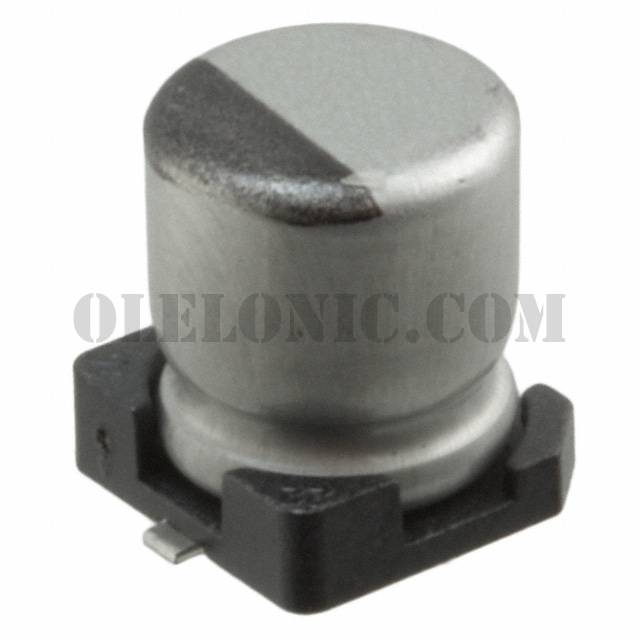

UWD1V100MCL1GS


UWD1V100MCL1GS

Part NumberUWD1V100MCL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UWD1V100MCL1GS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package1
ManufacturerNichicon
SeriesUWD
PackagingCut Tape (CT)
Part StatusActive
Capacitance10µF
Tolerance±20%
Voltage - Rated35V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Polarization-
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency75mA @ 120Hz
Ripple Current @ High Frequency150mA @ 100kHz
Impedance760 mOhms
Lead Spacing-
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.240" (6.10mm)
Surface Mount Land Size0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
