Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWD Series
Standard Package	1
Manufacturer	Nichicon
Series	UWD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	75mA @ 120Hz
Ripple Current @ High Frequency	150mA @ 100kHz
Impedance	760 mOhms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWD1C270MCL1GS	Nichicon, 27µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A102MCL1GS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1E220MCL1GS	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1C470MCL1GS	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A330MCL1GS	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H270MCL1GS	Nichicon, 27µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A331MCL1GS	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1H2R2MCL1GS	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1V330MCL1GS	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H4R7MCL1GS	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1E470MCL1GS	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1C220MCL1GS	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View

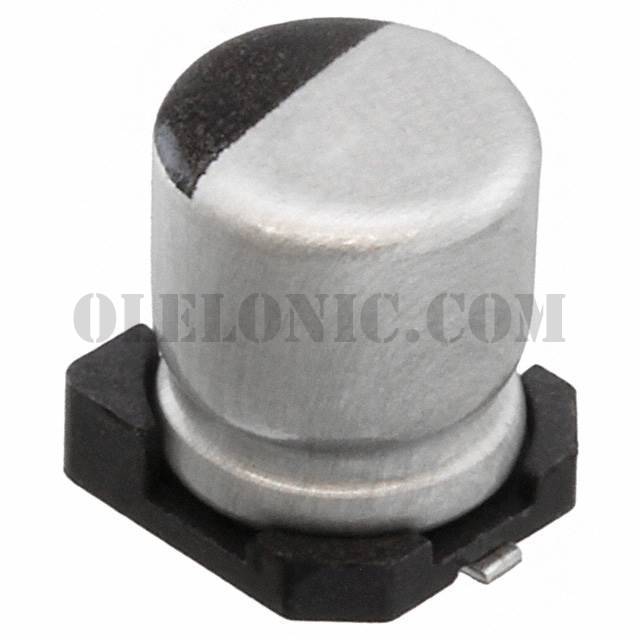

UWD1C220MCL1GS

Part NumberUWD1C220MCL1GS
