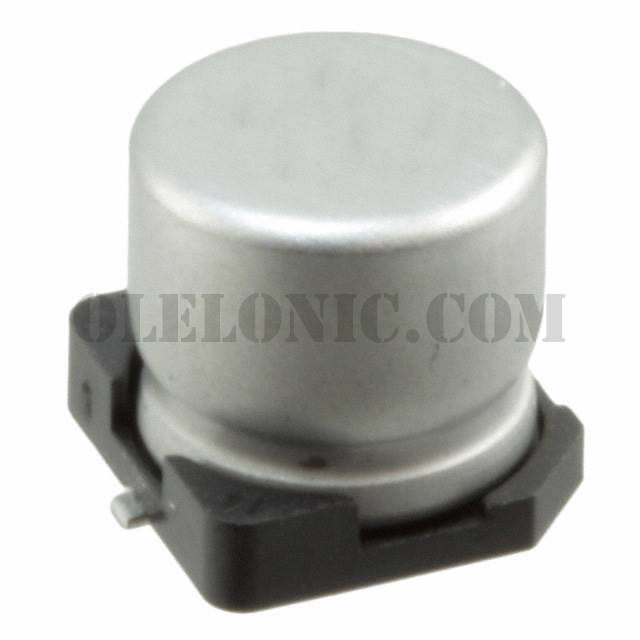

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUP Series
Standard Package	1
Manufacturer	Nichicon
Series	UUP
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	20mA @ 120Hz
Ripple Current @ High Frequency	30mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUP1A220MCL1GS	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1HR47MCL1GS	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1A330MCL1GS	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1E3R3MCL1GS	Nichicon, 3.3µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1C4R7MCL1GS	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1E3R3MCL1GS	Nichicon, 3.3µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1V3R3MCL1GS	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1A220MCL1GS	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP0J330MCL1GS	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1E100MCL1GS	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP1E4R7MCL1GS	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View
UUP0J220MCL1GS	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UUP	View

UUP1H4R7MCL1GS

Part NumberUUP1H4R7MCL1GS
