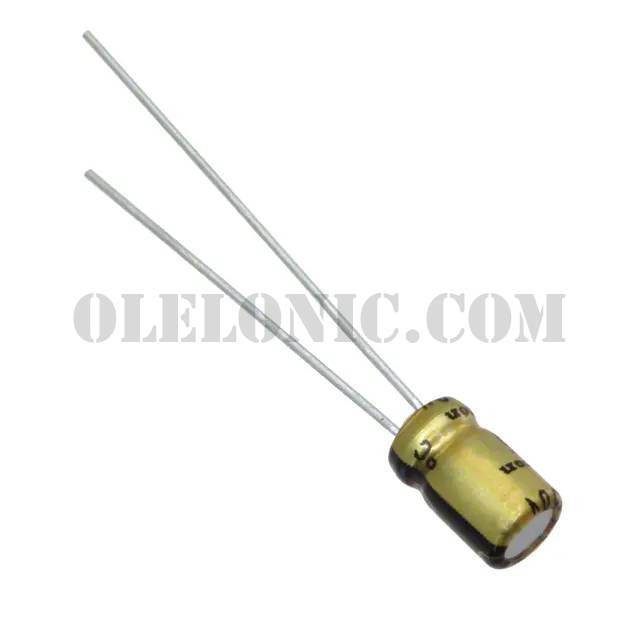

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USW Series
Standard Package	200
Manufacturer	Nichicon
Series	USW
Packaging	Bulk
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	24mA @ 120Hz
Ripple Current @ High Frequency	36mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
