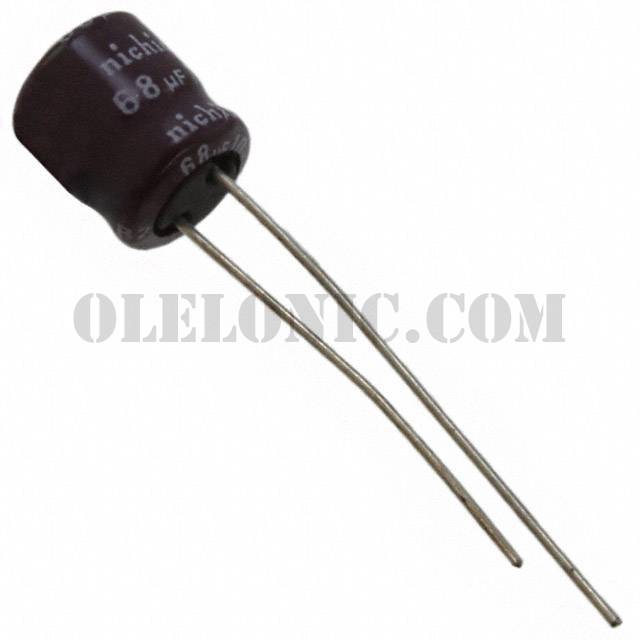

USF1A680MDD

USF1A680MDD

Part NumberUSF1A680MDD

ManufacturerNichicon

DescriptionCAP ALUM 68UF 20% 10V RADIAL

DatasheetUSF Series

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C

To learn about the specification of USF1A680MDD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add USF1A680MDD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of USF1A680MDD.
We are offering USF1A680MDD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

USF1A680MDD - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USF Series
Standard Package	200
Manufacturer	Nichicon
Series	USF
Packaging	Bulk
Part Status	Active
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	80mA @ 120Hz
Ripple Current @ High Frequency	160mA @ 100kHz
Impedance	800 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
