Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPZ Series
Standard Package	100
Manufacturer	Nichicon
Series	UPZ
Packaging	Bulk
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	520mA @ 120Hz
Ripple Current @ High Frequency	780mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPZW6560MHD	Nichicon, 56µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W330MHD	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G560MHD	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W121MHD	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D271MHD	Nichicon, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D151MND9	Nichicon, 150µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6101MHD	Nichicon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D391MHD6	Nichicon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G820MNY9	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W470MND9	Nichicon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6121MHD	Nichicon, 120µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D151MHD	Nichicon, 150µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View

UPZ2G560MND9

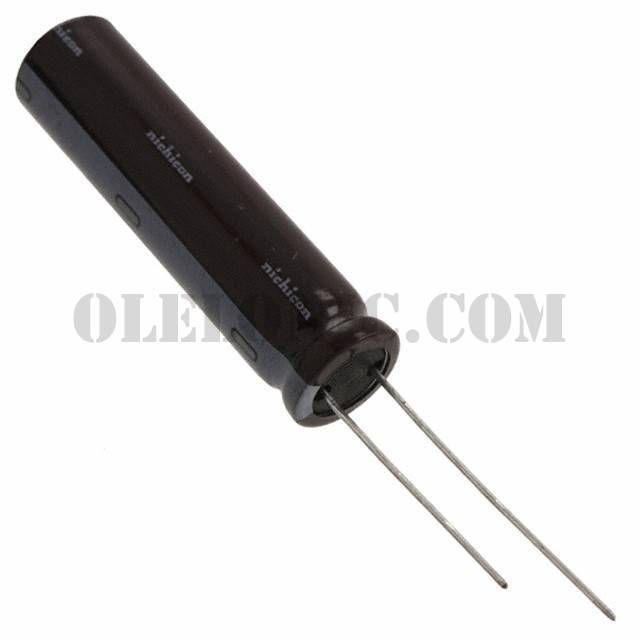

Part NumberUPZ2G560MND9
