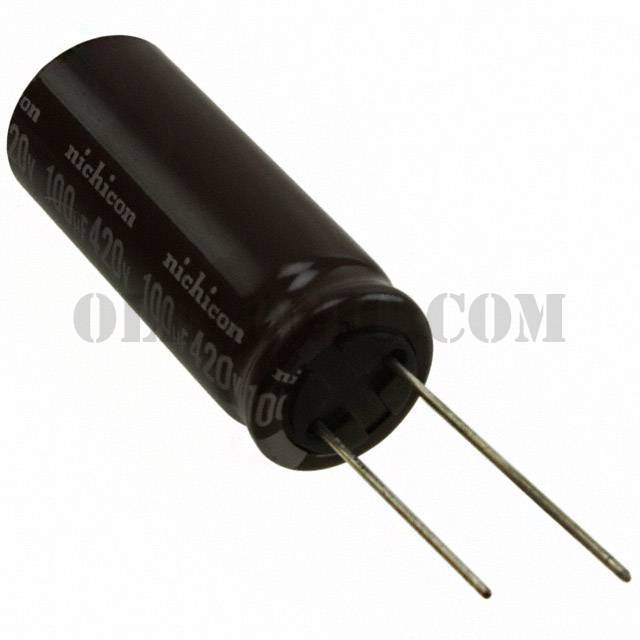

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPZ Series
Standard Package	50
Manufacturer	Nichicon
Series	UPZ
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	420V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	610mA @ 120Hz
Ripple Current @ High Frequency	915mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
