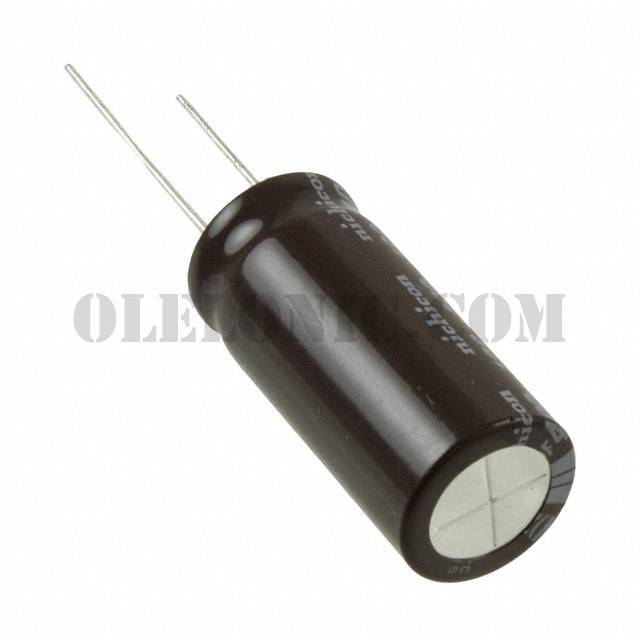

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPZ Series
Standard Package	50
Manufacturer	Nichicon
Series	UPZ
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	670mA @ 120Hz
Ripple Current @ High Frequency	1.005A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPZ2G121MHD6	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G101MNY9	Nichicon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G121MHD	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W820MHD6	Nichicon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2W180MPD	Nichicon, 18µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6101MHD	Nichicon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZW6820MHD	Nichicon, 82µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2G680MHD	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D181MHD	Nichicon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2E121MND9	Nichicon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D391MHD	Nichicon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View
UPZ2D391MHD6	Nichicon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPZ	View

UPZ2G121MHD

Part NumberUPZ2G121MHD
