Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPT Series
Standard Package	180
Manufacturer	Nichicon
Series	UPT
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	220V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.5A @ 120Hz
Ripple Current @ High Frequency	2.4A @ 10kHz
Lead Spacing	0.492" (12.50mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPT2W820MHD	Nichicon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E470MPD	Nichicon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G101MHD6	Nichicon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W181MRD	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G151MHD	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G331MRD	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P680MHD1TO	Nichicon, 68µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D680MPD	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2P151MHD	Nichicon, 150µF 220V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPTW6220MHD1TO	Nichicon, 22µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E820MHD	Nichicon, 82µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E121MHD	Nichicon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View

UPT2P561MRD6

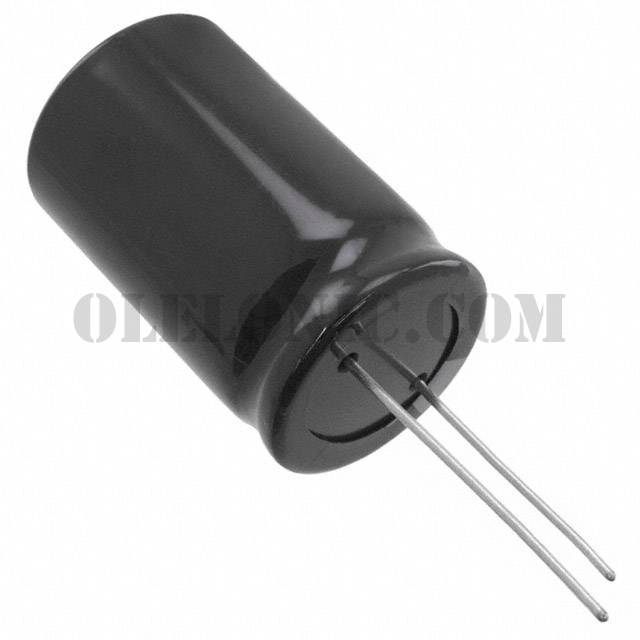

Part NumberUPT2P561MRD6
