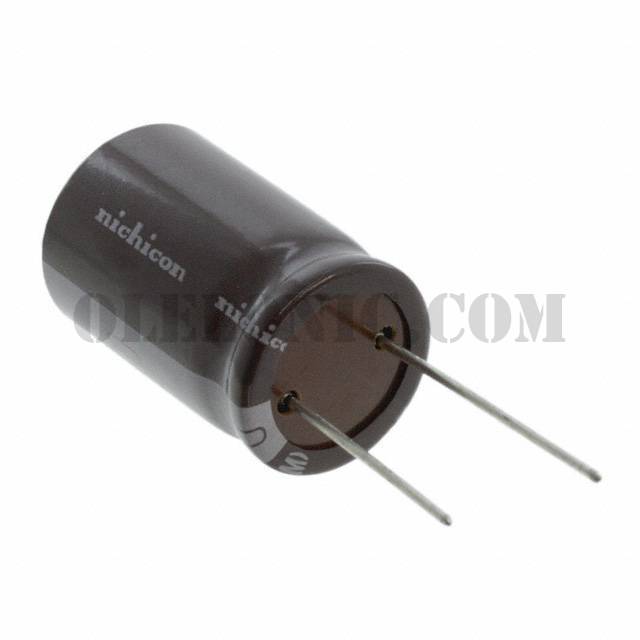

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPS
Packaging	Bulk
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	145mA @ 120Hz
Ripple Current @ High Frequency	232mA @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPS0J682MHD1TN	Nichicon, 6800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2C101MHD1TN	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS1H220MDD1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2A010MDD1TD	Nichicon, 1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1E101MED1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2DR47MED	Nichicon, 0.47µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1J470MPD1TA	Nichicon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2A151MHD1TO	Nichicon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS1E222MHD1TN	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS1V151MPD1TD	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1A102MPD1TD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2F100MPD1TD	Nichicon, 10µF 315V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View

UPS2W330MRD6

Part NumberUPS2W330MRD6
