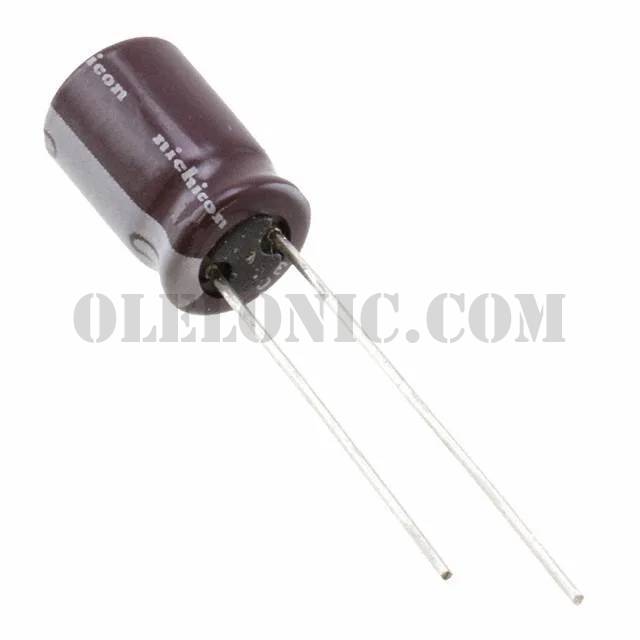

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UPS
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	205mA @ 120Hz
Ripple Current @ High Frequency	410mA @ 100kHz
Impedance	280 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPS1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1C101MED	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1A222MHD1TO	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2F100MPD1TD	Nichicon, 10µF 315V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1E100MDD1TD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1H151MPD1TD	Nichicon, 150µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J152MPD	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2A101MHD1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS1H331MPD1TD	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J332MHD1TO	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2G100MHD1TO	Nichicon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS1E152MHD1TN	Nichicon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View

UPS1E221MPD1TD

Part NumberUPS1E221MPD1TD
