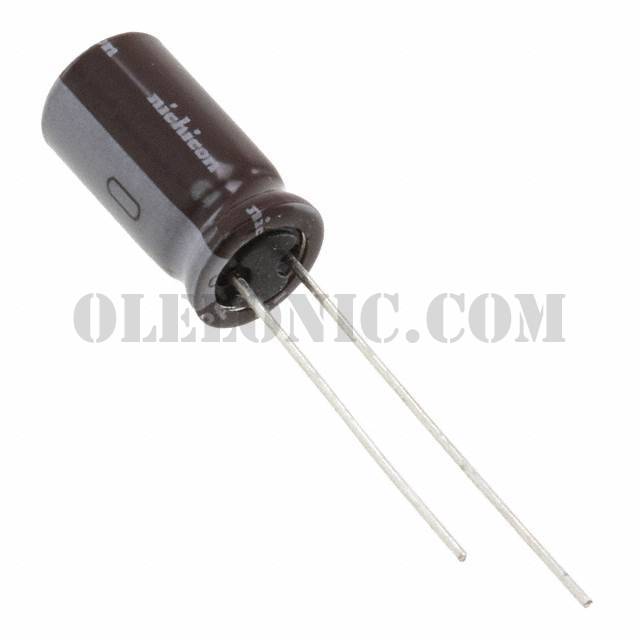

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPA Series
Standard Package	200
Manufacturer	Nichicon
Series	UPA
Packaging	Bulk
Part Status	Active
Capacitance	820µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	645mA @ 120Hz
Ripple Current @ High Frequency	860mA @ 100kHz
Impedance	62 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPA1C391MPD1TD	Nichicon, 390µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA0J102MPD6TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1A182MPD6TD	Nichicon, 1800µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E102MHD3	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1A152MPD1TD	Nichicon, 1500µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1C102MPD3TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1C472MHD6TN	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1V561MPD1TD	Nichicon, 560µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E472MHD	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA0J122MPD3TD	Nichicon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA0J822MHD1TN	Nichicon, 8200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA0J102MPD1TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View

UPA1A821MPD

Part NumberUPA1A821MPD
