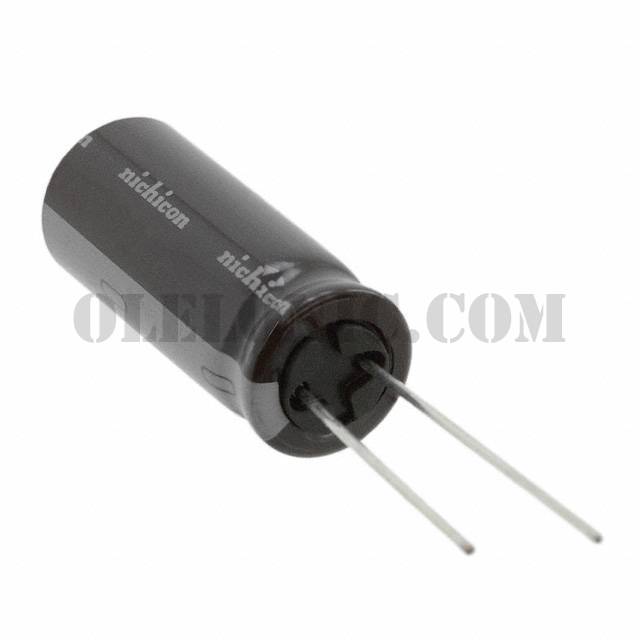

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPA Series
Standard Package	100
Manufacturer	Nichicon
Series	UPA
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.312A @ 120Hz
Ripple Current @ High Frequency	2.72A @ 100kHz
Impedance	18 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPA0J152MPD3TD	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1E472MHD	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1E681MPD1TD	Nichicon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1V272MHD6TN	Nichicon, 2700µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA0J152MPD6TD	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1C152MPD1TD	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1V272MHD6TN	Nichicon, 2700µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1A822MHD6TN	Nichicon, 8200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1E391MPD1TD	Nichicon, 390µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPA	View
UPA1E182MHD1TO	Nichicon, 1800µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View
UPA1C102MPD3TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UPA	View
UPA1C472MHD6TN	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPA	View

UPA1A472MHD

Part NumberUPA1A472MHD
