UP4B-100-R
UP4B-100-R

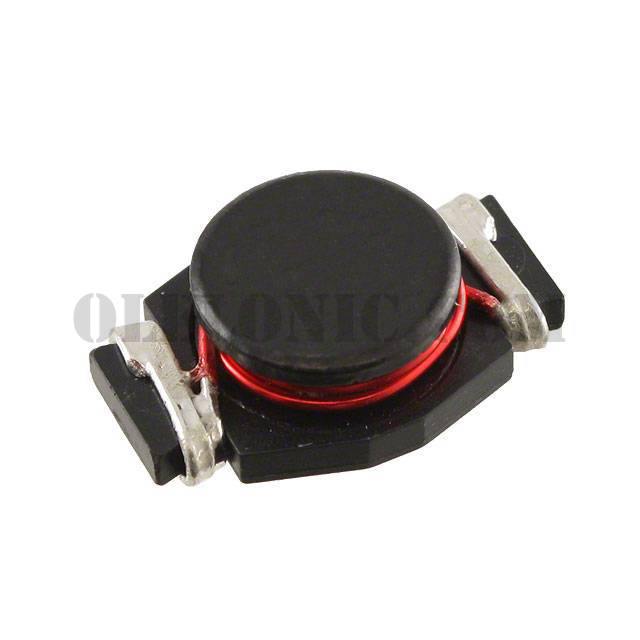

Part Number UP4B-100-R Description FIXED IND 10UH 6.8A 15 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10µH Unshielded Wirewound Inductor 6.8A 15mOhm Max Nonstandard
To learn about the specification of UP4B-100-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UP4B-100-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UP4B-100-R.
We are offering UP4B-100-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
UP4B-100-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet UNI-PAC (-R) Standard Package 275 Manufacturer Eaton - Electronics Division Series UNI-PAC™ Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 10µH Tolerance ±20% Current Rating (Amps) 6.8A Current - Saturation 11.5A Shielding Unshielded DC Resistance (DCR) 15mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.870" L x 0.591" W (22.10mm x 15.00mm) Height - Seated (Max) 0.310" (7.87mm)
