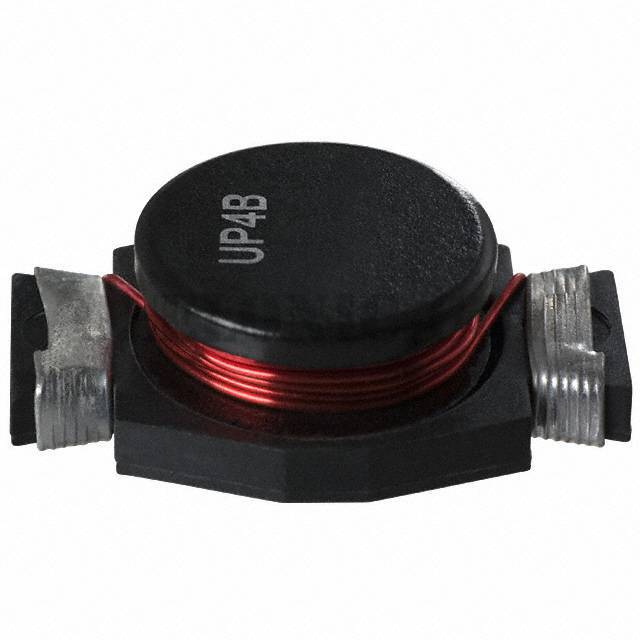

UP4B-150-R

UP4B-150-R

Part NumberUP4B-150-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 15UH 5.5A 23 MOHM SMD

DatasheetUNI-PAC (-R)

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µH Unshielded Wirewound Inductor 5.5A 23mOhm Max Nonstandard

To learn about the specification of UP4B-150-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UP4B-150-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UP4B-150-R.
We are offering UP4B-150-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UP4B-150-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	UNI-PAC (-R)
Standard Package	275
Manufacturer	Eaton - Electronics Division
Series	UNI-PAC™
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	15µH
Tolerance	±20%
Current Rating (Amps)	5.5A
Current - Saturation	9.1A
Shielding	Unshielded
DC Resistance (DCR)	23mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.870" L x 0.591" W (22.10mm x 15.00mm)
Height - Seated (Max)	0.310" (7.87mm)
