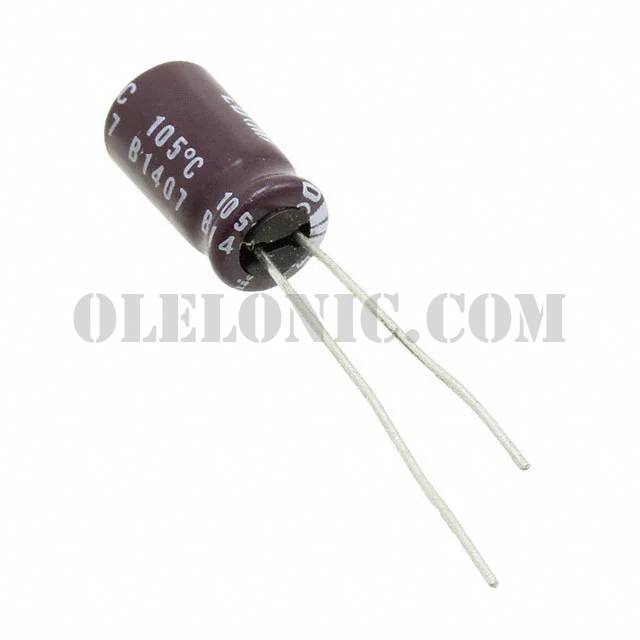

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ULD Series
Standard Package	2000
Manufacturer	Nichicon
Series	ULD
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	49mA @ 120Hz
Ripple Current @ High Frequency	98mA @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ULD1V470MED1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD1C101MED1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2G8R2MPD	Nichicon, 8.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2A4R7MDD1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2G1R2MPD1TD	Nichicon, 1.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2C5R6MED1TD	Nichicon, 5.6µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2D5R6MPD6TD	Nichicon, 5.6µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2W5R6MPD1TD	Nichicon, 5.6µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD1A101MDD1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2G1R5MPD6TD	Nichicon, 1.5µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2G1R8MPD1TD	Nichicon, 1.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2G3R3MPD1TD	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View

ULD2D4R7MED1TD

Part NumberULD2D4R7MED1TD
