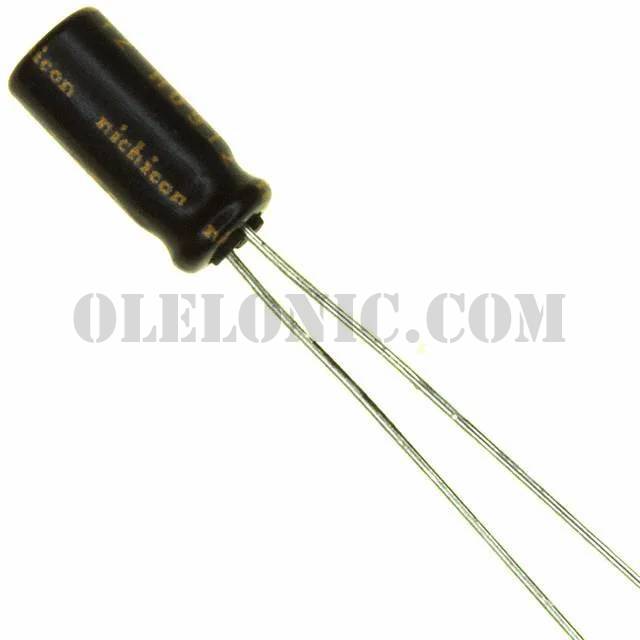

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKW Series
Standard Package	200
Manufacturer	Nichicon
Series	UKW
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	70mA @ 120Hz
Ripple Current @ High Frequency	140mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKW1E331MPD1TD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E101MED	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1J471MHD1TO	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW0J471MED1TD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A471MHD1TN	Nichicon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1V470MDD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C682MHD	Nichicon, 6800µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1A101MDD1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1V331MPD1TD	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C222MHD1TO	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E101MED1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View

UKW1J100MDD

Part NumberUKW1J100MDD
