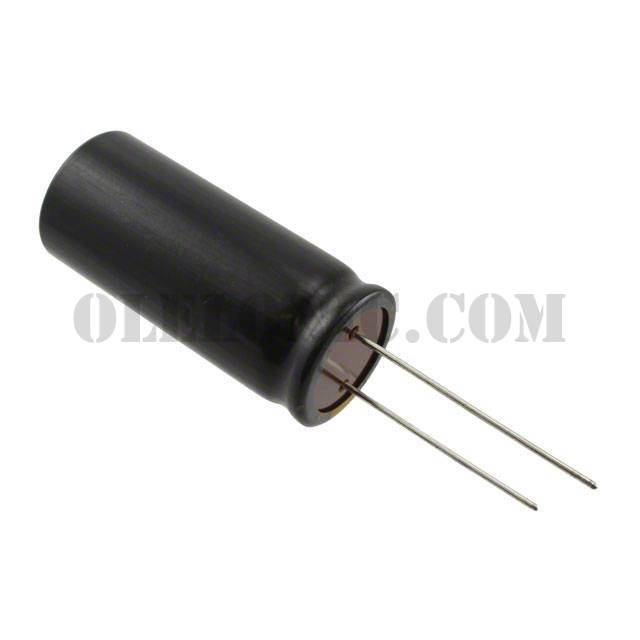

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKW Series
Standard Package	250
Manufacturer	Nichicon
Series	UKW
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	2.4A @ 120Hz
Ripple Current @ High Frequency	2.76A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKW1E101MED	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1A222MPD1TD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1A103MHD	Nichicon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H332MHD	Nichicon, 3300µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1J101MPD1TD	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1V153MRD	Nichicon, 15000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H331MPD	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1A331MED1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H100MDD1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C333MRD	Nichicon, 33000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View

UKW2A222MRD

Part NumberUKW2A222MRD
