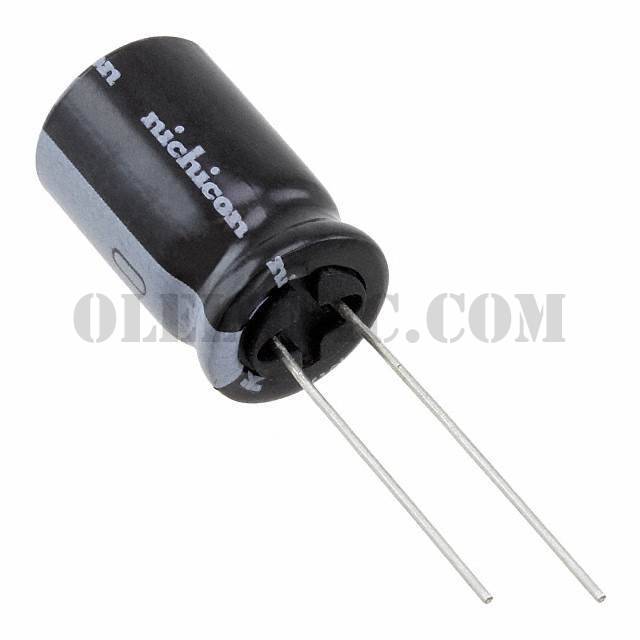

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	UKL
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	550mA @ 120Hz
Ripple Current @ High Frequency	825mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKL1J220MPD1TD	Nichicon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E220MDDANATA	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1H220MED1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C681MHD1TO	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C222MHD1TN	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H101KPD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H4R7KDDANATD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1E101KPDANATA	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C220KDDANATA	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C100MDD1TD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C100MDDANATD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1V101MPDANATD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View

UKL1J221MHD1TO

Part NumberUKL1J221MHD1TO
