Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UKL
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	370mA @ 120Hz
Ripple Current @ High Frequency	555mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKL2A100MPD1TD	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E681MHD1TO	Nichicon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1A101KED1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL2AR22MDD1TD	Nichicon, 0.22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1A101KED1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H4R7KDDANATD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C152MHD1TN	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C152MHD1TN	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C220MDDANA	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1H151KPD	Nichicon, 150µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1V220KEDANATD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View

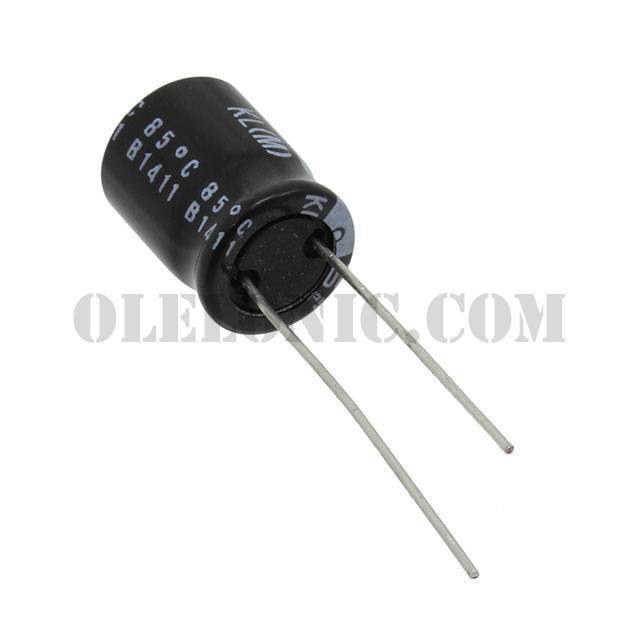

UKL1C221MPD1TD
