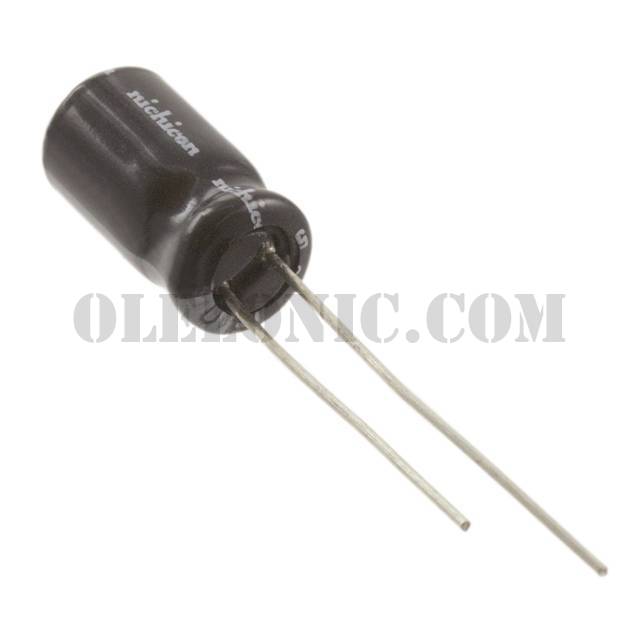

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UKL
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±10%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	170mA @ 120Hz
Ripple Current @ High Frequency	340mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
