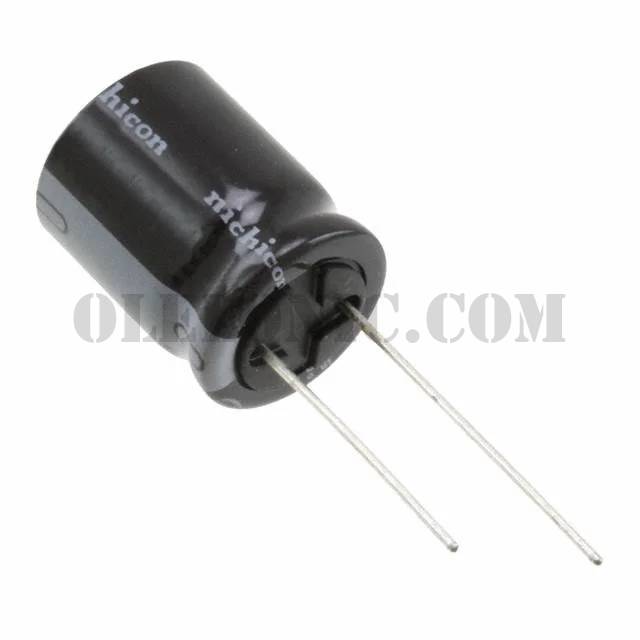

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHW Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UHW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.135A @ 120Hz
Ripple Current @ High Frequency	2.27A @ 100kHz
Impedance	47 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHW0J472MHD	Nichicon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J391MHD6	Nichicon, 390µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K471MHD6TN	Nichicon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A121MPD	Nichicon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1C472MHD	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A121MPD1TD	Nichicon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1E332MHD	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J681MHD	Nichicon, 680µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW0J682MHD6	Nichicon, 6800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW0J392MHD	Nichicon, 3900µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K391MHD1TO	Nichicon, 390µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J331MPD1TD	Nichicon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View

UHW2A391MHD3TN

Part NumberUHW2A391MHD3TN
