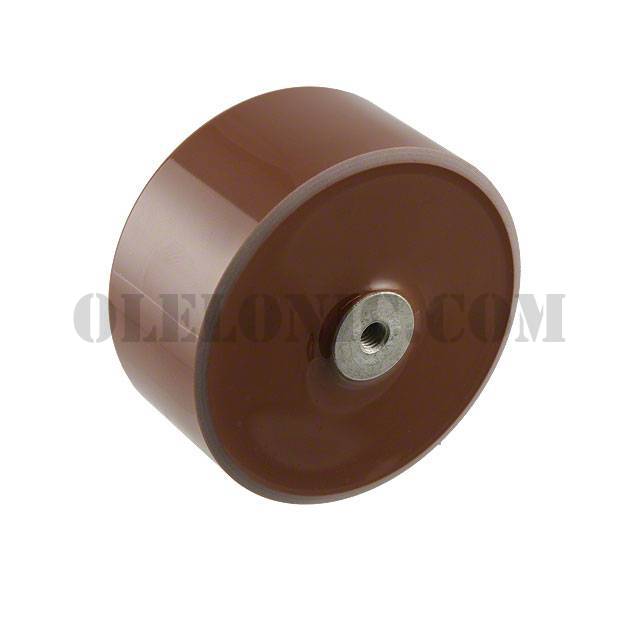

UHV-9A

UHV-9A

Part NumberUHV-9A

ManufacturerTDK Corporation

DescriptionCAP CER 2000PF 40KV Z5T DISK

DatasheetUHV Series

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2000pF ±10% 40000V (40kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded

To learn about the specification of UHV-9A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UHV-9A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UHV-9A.
We are offering UHV-9A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UHV-9A - Product Attributes

Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	2000pF
Tolerance	±10%
Voltage - Rated	40000V (40kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	2.362" Dia x 1.299" L (60.00mm x 33.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-
