Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	200pF
Tolerance	±10%
Voltage - Rated	50000V (50kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder

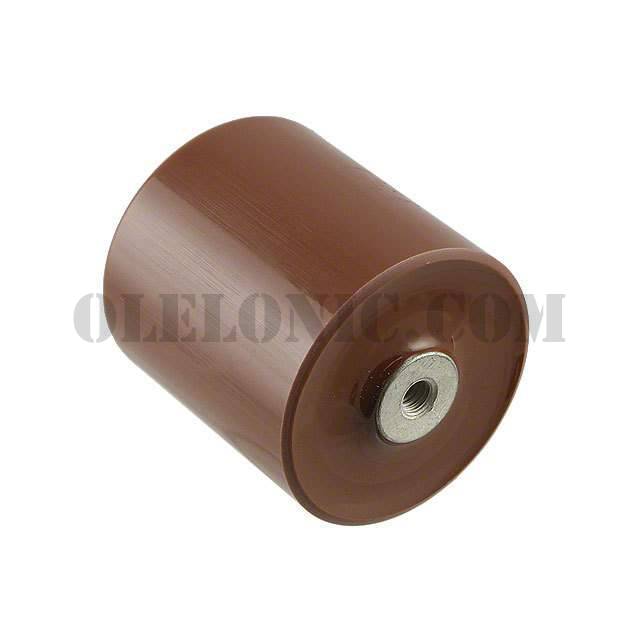

Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	1.181" Dia x 1.378" L (30.00mm x 35.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-

UHV1C122MPD	Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-232A	TDK Corporation, 400pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV-241A	TDK Corporation, 100pF ±10% 40000V (40kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1V561MPD	Nichicon, 560µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-221A	TDK Corporation, 200pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1A332MHD	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-222A	TDK Corporation, 400pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1A102MPD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV0J152MPD	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E561MPD	Nichicon, 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E221MPD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1C471MPD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View

UHV-252A

Part NumberUHV-252A
