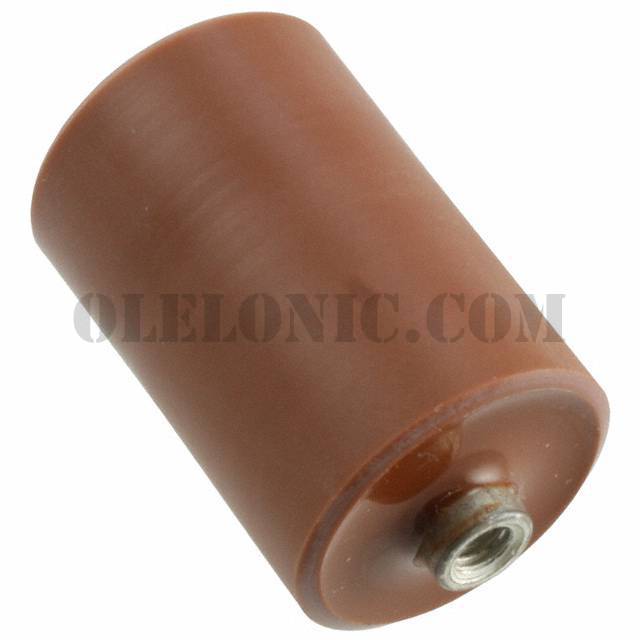

Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	100pF
Tolerance	±10%
Voltage - Rated	50000V (50kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	0.787" Dia x 1.378" L (20.00mm x 35.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-
