Home/Product Catalog/Capacitors / Ceramic Capacitors/  UHV-223A

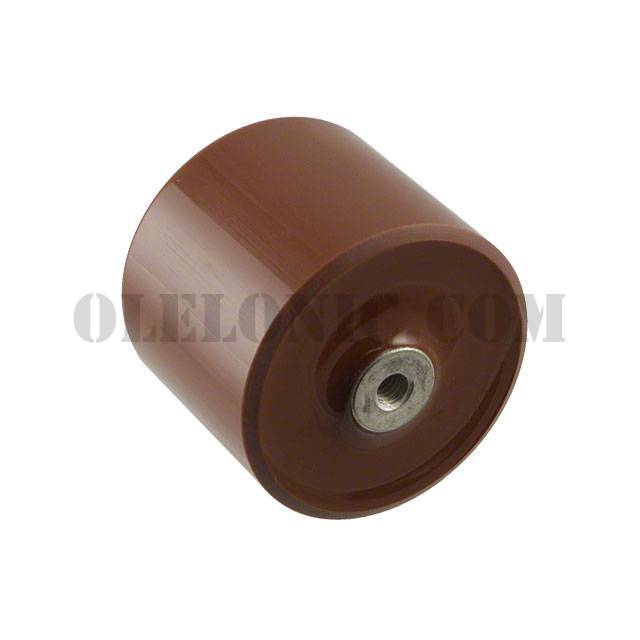

UHV-223A


UHV-223A

Part NumberUHV-223A

Manufacturer

Description

Datasheet

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UHV-223A - Product Attributes

Categories Capacitors / Ceramic Capacitors
Datasheet
Standard Package1
ManufacturerTDK Corporation
SeriesUHV
PackagingBulk
Part StatusActive
Capacitance700pF
Tolerance±10%
Voltage - Rated20000V (20kV)
Temperature CoefficientZ5T
Operating Temperature-30°C ~ 85°C
FeaturesHigh Voltage, Low Dissipation Factor
Ratings-
ApplicationsGeneral Purpose
Failure Rate-
Mounting TypeRequires Holder
Package / CaseDisk, Metal Fitting - Threaded
Size / Dimension1.181" Dia x 0.906" L (30.00mm x 23.00mm)
Height - Seated (Max)-
Thickness (Max)-
Lead Spacing-
Lead Style-
