Categories	Capacitors / Ceramic Capacitors
Datasheet	UHV Series
Standard Package	1
Manufacturer	TDK Corporation
Series	UHV
Packaging	Bulk
Part Status	Active
Capacitance	200pF
Tolerance	±10%
Voltage - Rated	20000V (20kV)
Temperature Coefficient	Z5T
Operating Temperature	-30°C ~ 85°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Requires Holder

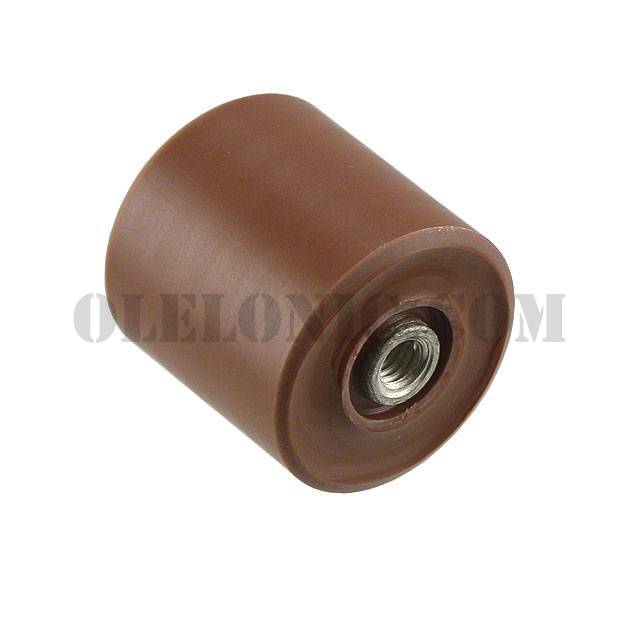

Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension	0.787" Dia x 0.906" L (20.00mm x 23.00mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	-

UHV1C102MPD6TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E222MHD	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1E331MPD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV-241A	TDK Corporation, 100pF ±10% 40000V (40kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1C152MPD	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V122MHD	Nichicon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1A222MPD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1V101MED	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHV	View
UHV1C101MDD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHV	View
UHV-10A	TDK Corporation, 560pF ±10% 50000V (50kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded, UHV	View
UHV1A471MPD	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View
UHV1A332MHD	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHV	View

UHV-221A

Part NumberUHV-221A
