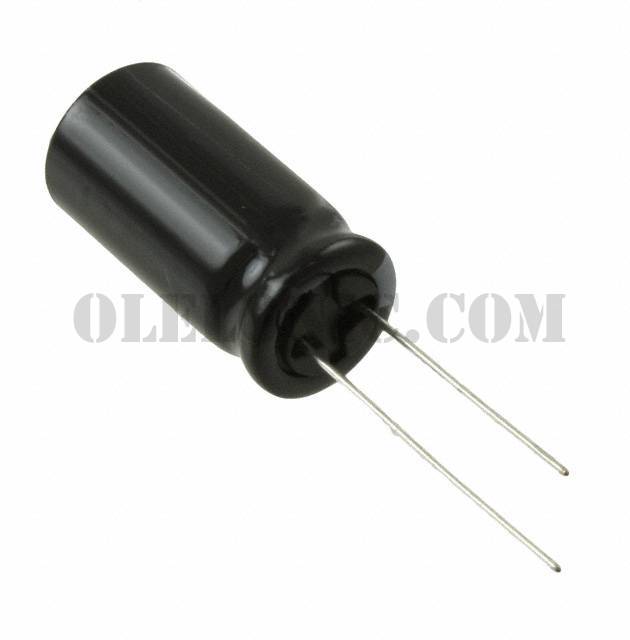

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHD Series Datasheet
Standard Package	100
Manufacturer	Nichicon
Series	UHD
Packaging	Bulk
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.888A @ 120Hz
Ripple Current @ High Frequency	2.36A @ 100kHz
Impedance	21 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
