Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHD Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UHD
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	506.8mA @ 120Hz
Ripple Current @ High Frequency	724mA @ 100kHz
Impedance	74 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHD1H102MHD1TN	Nichicon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHD	View
UHD1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHD	View
UHD0J151MDD1TD	Nichicon, 150µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UHD	View
UHD1V561MPD	Nichicon, 560µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UHD	View
UHD1E221MPD1TA	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UHD	View
UHD1H221MPD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UHD	View
UHD1C681MPD6	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UHD	View
UHD1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UHD	View
UHD0J151MDD1TD	Nichicon, 150µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UHD	View
UHD0J222MPD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UHD	View
UHD1C122MPD	Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, UHD	View
UHD1E222MHD	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHD	View

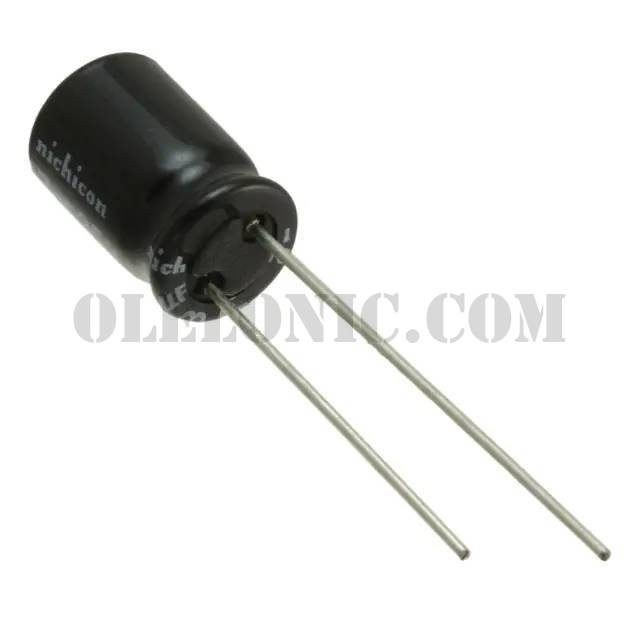

UHD1H101MPD

Part NumberUHD1H101MPD
