Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFW Series
Standard Package	50
Manufacturer	Nichicon
Series	UFW
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	2.36A @ 120Hz
Ripple Current @ High Frequency	2.714A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.398" (35.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFW1H331MPD	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1A222MPD1TD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C102MPD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C101MDD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1H0R1MDD	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C223MRD	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A100MED	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1J220MDD1TD	Nichicon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2AR47MDD1TD	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1V222MHD1TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2AR47MDD	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View

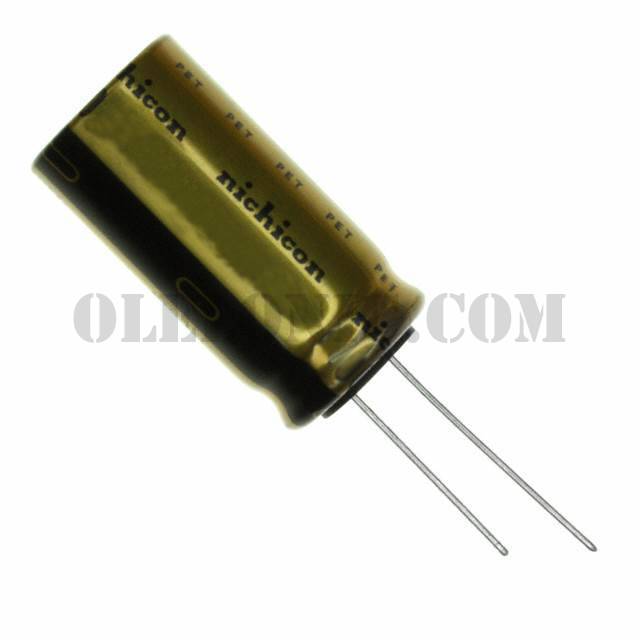

UFW1H332MHD

Part NumberUFW1H332MHD
