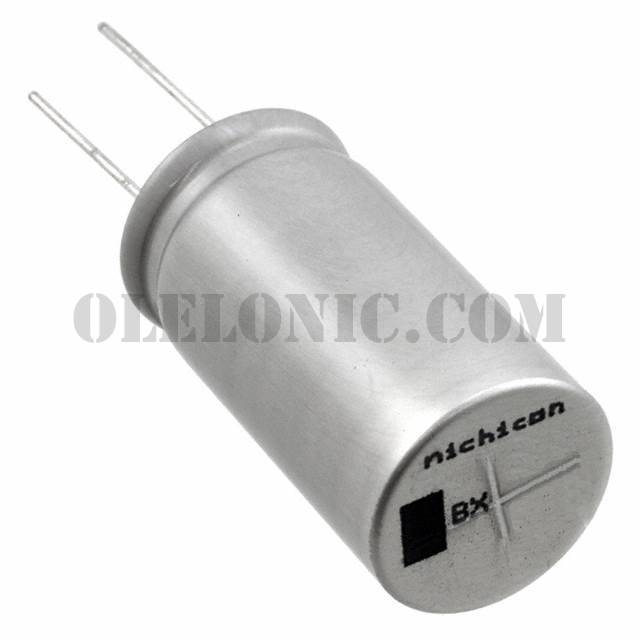

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBX Series
Standard Package	50
Manufacturer	Nichicon
Series	UBX
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 150°C
Operating Temperature	-55°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	804mA @ 120Hz
Ripple Current @ High Frequency	1.2A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBX2A560MPL1TD	Nichicon, 56µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1H101MPL1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1V4R7MPL	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1C102MHL1TN	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2A560MPL1TD	Nichicon, 56µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2V6R8MPL1TD	Nichicon, 6.8µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2A680MHL	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1H561MHL	Nichicon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2V150MHL1TO	Nichicon, 15µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1A102MHL1TO	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2C101MHL1TN	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX1V100MPL1TD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View

UBX1C222MHL

Part NumberUBX1C222MHL
