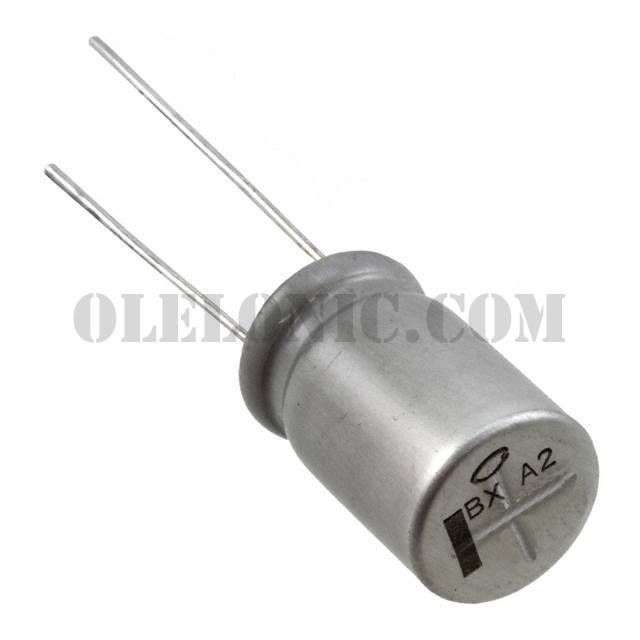

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBX Series
Standard Package	200
Manufacturer	Nichicon
Series	UBX
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 150°C
Operating Temperature	-40°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	160mA @ 120Hz
Ripple Current @ High Frequency	288mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBX2D220MPL1TD	Nichicon, 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1K101MHL1TO	Nichicon, 100µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1H221MPL1TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1E101MPL1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J681MHL	Nichicon, 680µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX1V3R3MPL1TD	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2G150MHL1TO	Nichicon, 15µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1V010MPL1TD	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J101MPL1TD	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J471MHL1TN	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX1E471MHL1TN	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2D220MPL1TD	Nichicon, 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View

UBX2C220MPL

Part NumberUBX2C220MPL
