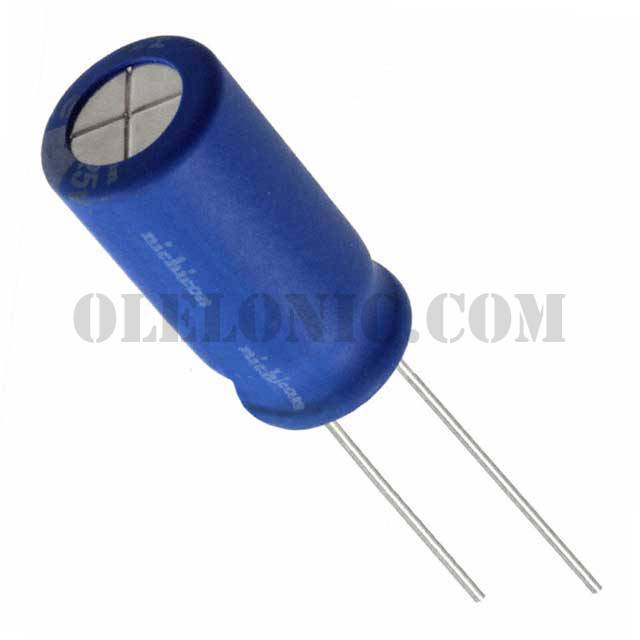

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBW Series
Standard Package	200
Manufacturer	Nichicon
Series	UBW
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 135°C
Operating Temperature	-55°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	475mA @ 120Hz
Ripple Current @ High Frequency	950mA @ 100kHz
Impedance	75 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBW2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1E102MHD1TO	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1H220MPD1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1C102MHD1TO	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1K220MPD1TD	Nichicon, 22µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1K220MPD1TD	Nichicon, 22µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW2A100MPD1TD	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1A221MPD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1J221MHD	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1J470MPD	Nichicon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View

UBW1V331MPD

Part NumberUBW1V331MPD
