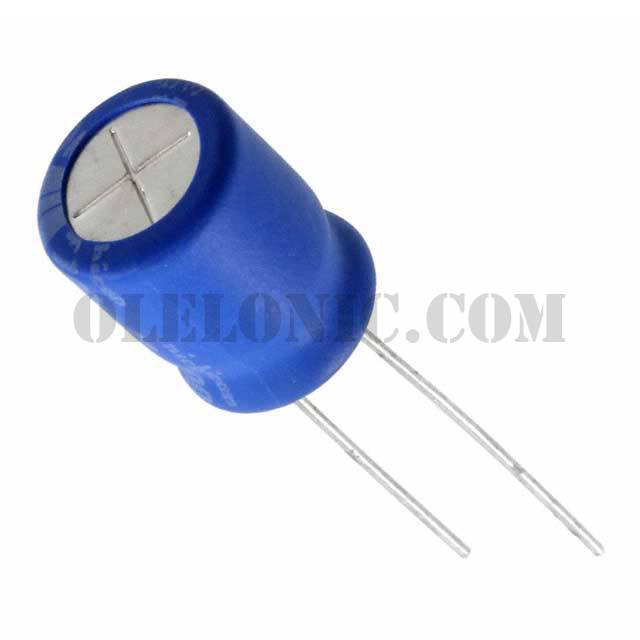

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBW Series
Standard Package	200
Manufacturer	Nichicon
Series	UBW
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 135°C
Operating Temperature	-55°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	265mA @ 120Hz
Ripple Current @ High Frequency	530mA @ 100kHz
Impedance	590 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBW1V102MHD	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1H010MPD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1J101MPD1TD	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1E101MPD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1A471MPD1TD	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1A332MHD1TN	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1V221MPD1TD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1C331MPD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1H4R7MPD1TD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1K101MPD	Nichicon, 100µF 80V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1A331MPD1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View

UBW1J470MPD

Part NumberUBW1J470MPD
