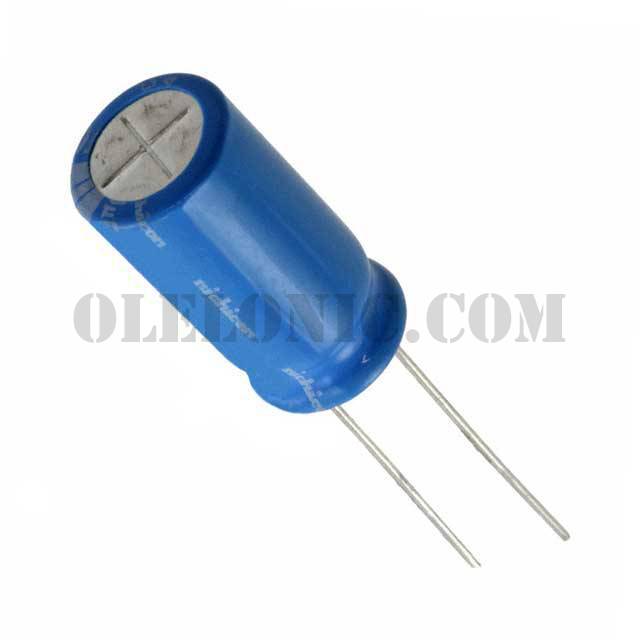

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBT Series
Standard Package	1
Manufacturer	Nichicon
Series	UBT
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 125°C
Operating Temperature	-25°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	53mA @ 120Hz
Ripple Current @ High Frequency	95.4mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBT1V101MPD1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT2W4R7MPD1TD	Nichicon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1K471MHD1TN	Nichicon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT2D330MHD1TO	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1H471MHD1TO	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT2D470MHD	Nichicon, 47µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1K330MPD1TD	Nichicon, 33µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C, UBT	View
UBT1H471MHD8	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT1J220MPD1TD	Nichicon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1K221MHD1TO	Nichicon, 220µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View

UBT2V4R7MPD1TD

Part NumberUBT2V4R7MPD1TD
