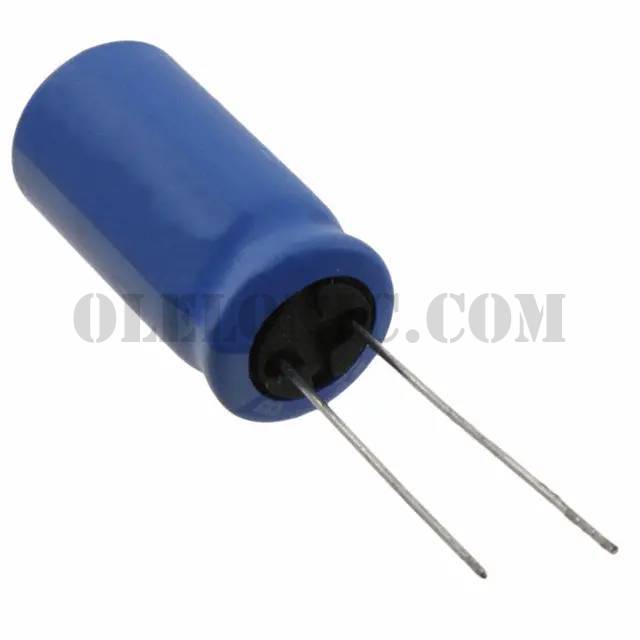

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBT Series
Standard Package	500
Manufacturer	Nichicon
Series	UBT
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	665mA @ 120Hz
Ripple Current @ High Frequency	1.33A @ 100kHz
Impedance	70 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBT1A102MPD1TD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1K101MPD1TD	Nichicon, 100µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C, UBT	View
UBT2A221MHD1TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT2A4R7MPD1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT2A331MHD	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1H470MPD1TA	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1C331MPD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1C222MHD1TN	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT1K331MHD	Nichicon, 330µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1H3R3MPD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1A221MPD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View

UBT1H331MHD1TO

Part NumberUBT1H331MHD1TO
