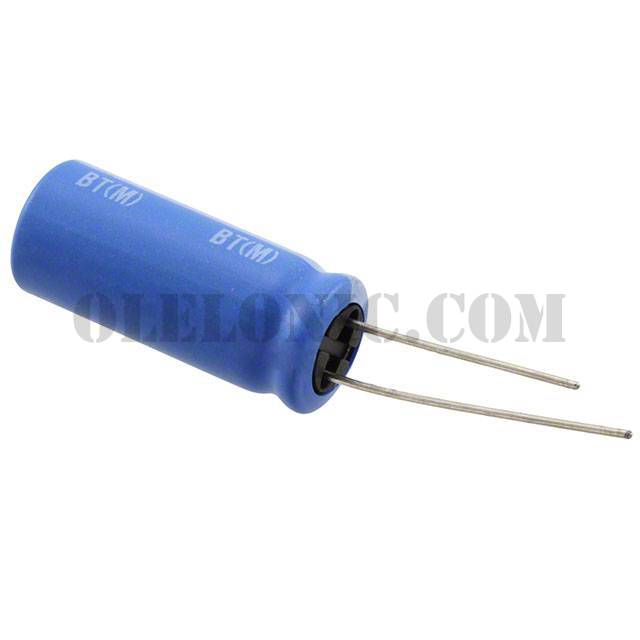

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBT Series
Standard Package	100
Manufacturer	Nichicon
Series	UBT
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	730mA @ 120Hz
Ripple Current @ High Frequency	1.46A @ 100kHz
Impedance	97 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBT2E330MHD1TO	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1C101MPD1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1H010MPD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT2D100MPD1TD	Nichicon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1C222MHD1TN	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT2A4R7MPD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1J221MHD	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1A472MHD	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT2V330MHD1TN	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1A102MPD1TD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT1V471MHD1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View

UBT1J471MHD

Part NumberUBT1J471MHD
