TYS4030220M-10
TYS4030220M-10

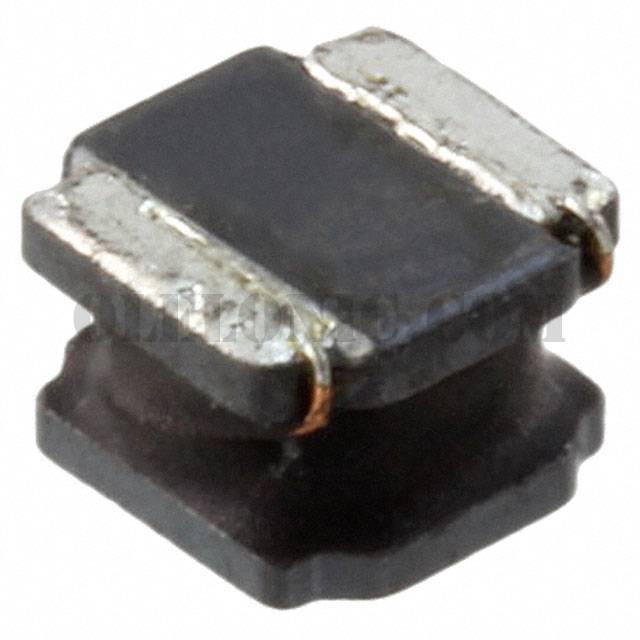

Part Number TYS4030220M-10 Description FIXED IND 22UH 1A 292.5 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Shielded Wirewound Inductor 1A 292.5mOhm Max Nonstandard
To learn about the specification of TYS4030220M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS4030220M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS4030220M-10.
We are offering TYS4030220M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TYS4030220M-10 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet TYS4030220M-10 Drawing Standard Package 2000 Manufacturer Laird-Signal Integrity Products Series TYS4030 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core - Inductance 22µH Tolerance ±20% Current Rating (Amps) 1A Current - Saturation 1.3A Shielding Shielded DC Resistance (DCR) 292.5mOhm Max Q @ Freq - Frequency - Self Resonant 10MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm) Height - Seated (Max) 0.118" (3.00mm)
TYS4030220M-10 - Related ProductsMore >>
TYS5040680M-10 Laird-Signal Integrity Products, 68µH Shielded Inductor 800mA 400mOhm Max Nonstandard, TYS5040
View
TYS6045470M-10 Laird-Signal Integrity Products, 47µH Shielded Inductor 1.2A 200mOhm Nonstandard, TYS6045
View
TYS50402R2N-10 Laird-Signal Integrity Products, 2.2µH Shielded Inductor 3.8A 19mOhm Max Nonstandard, TYS5040
View
TYS3015100M-10 Laird-Signal Integrity Products, 10µH Shielded Inductor 770mA 250mOhm Max Nonstandard, TYS3015
View
TYS5040470M-10 Laird-Signal Integrity Products, 47µH Shielded Inductor 1A 272mOhm Max Nonstandard, TYS5040
View
TYS6045100M-10 Laird-Signal Integrity Products, 10µH Shielded Inductor 2.45A 48mOhm Nonstandard, TYS6045
View
TYS80406R8M-10 Laird-Signal Integrity Products, 6.8µH Shielded Inductor 3.6A 24mOhm Max Nonstandard, TYS8040
View
TYS4018221M-10 Laird-Signal Integrity Products, 220µH Shielded Inductor 170mA 4Ohm Max Nonstandard, TYS4018
View
TYS4018220M-10 Laird-Signal Integrity Products, 22µH Shielded Inductor 590mA 360mOhm Max Nonstandard, TYS4018
View
TYS5020220M-10 Laird-Signal Integrity Products, 22µH Shielded Inductor 1.1A 226mOhm Max 2020 (5050 Metric), TYS5020
View
TYS6028330M-10 Laird-Signal Integrity Products, 33µH Shielded Inductor 1.22A 185mOhm Nonstandard, TYS6028
View
TYS8040330M-10 Laird-Signal Integrity Products, 33µH Shielded Inductor 1.8A 97mOhm Max Nonstandard, TYS8040
View
TYS4030220M-10 - Tags
